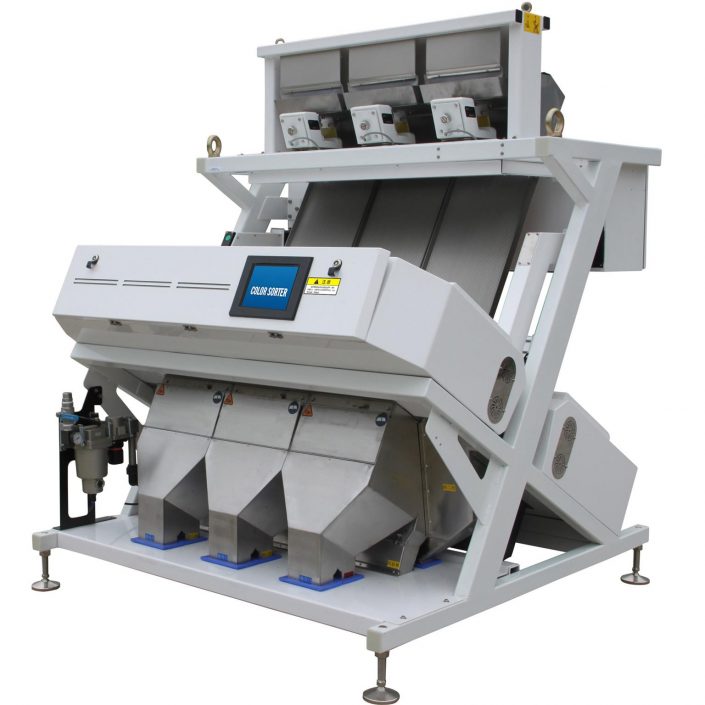

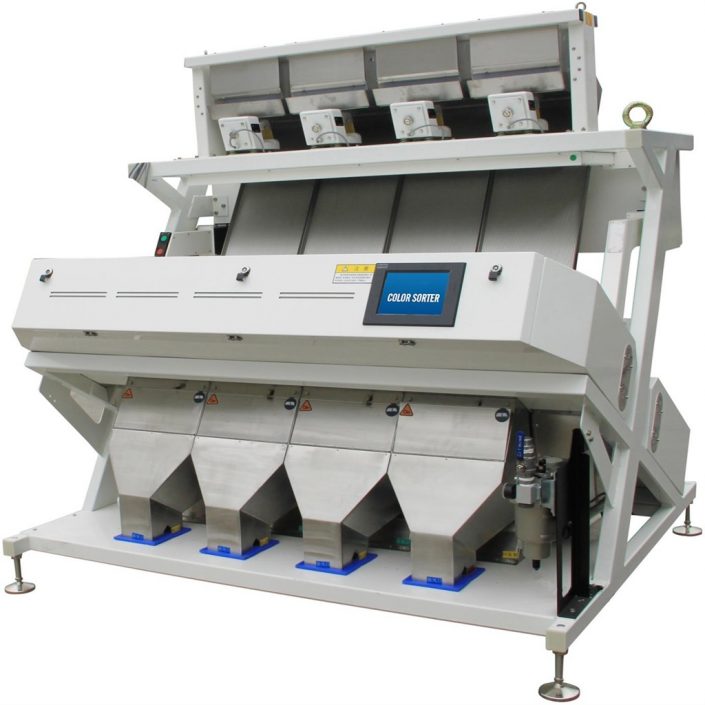

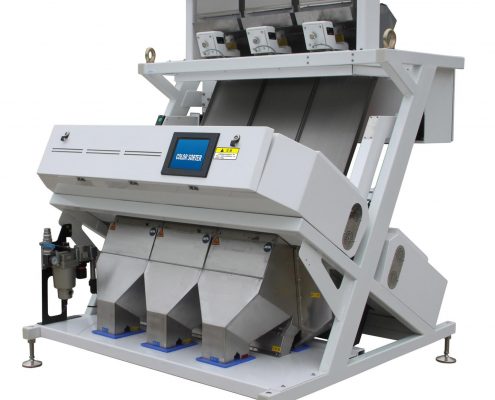

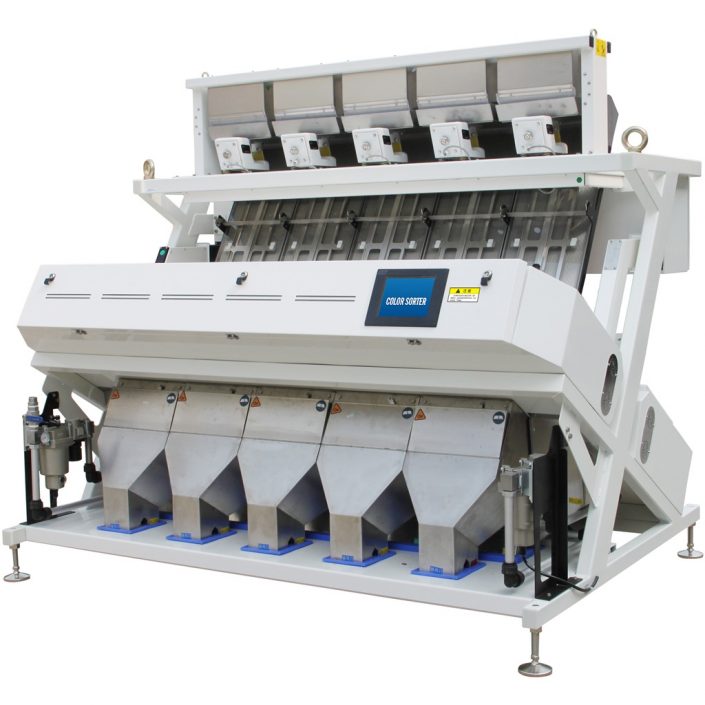

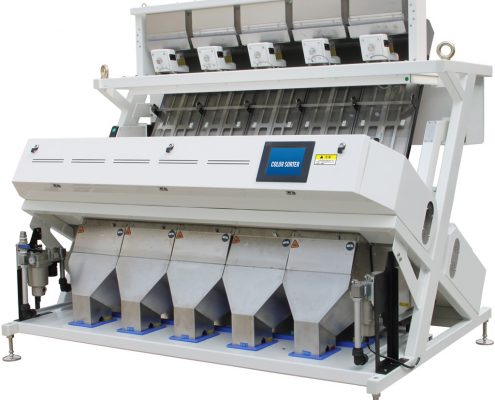

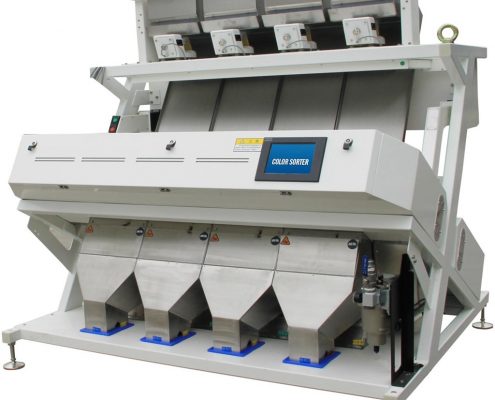

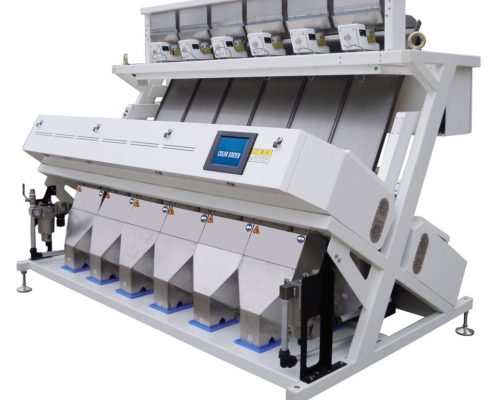

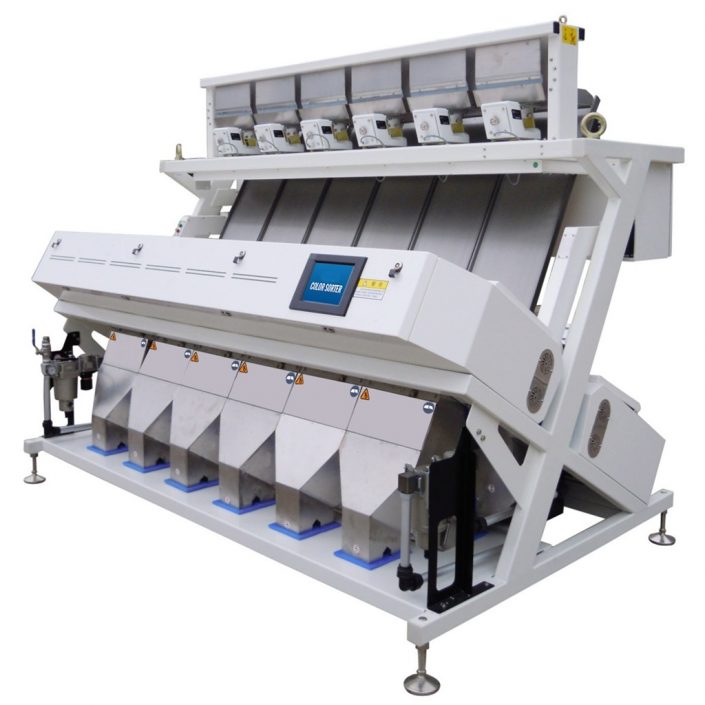

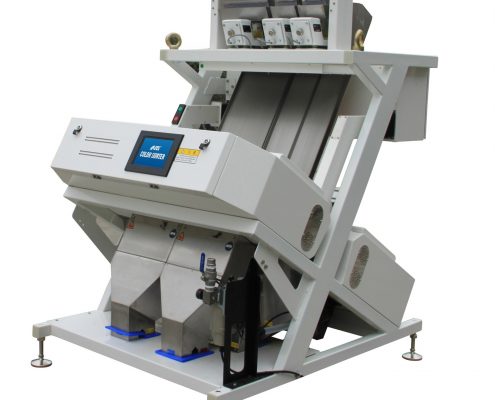

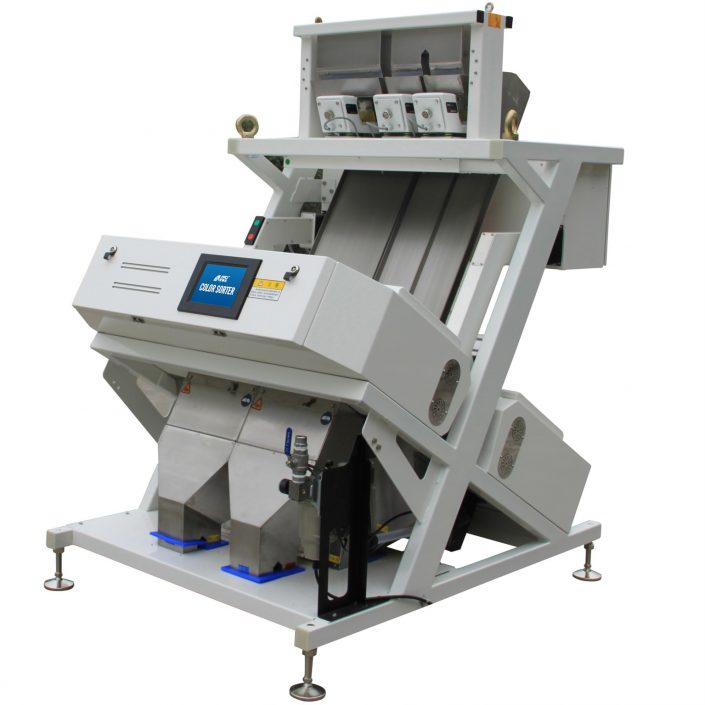

RCSK Series CCD Beans Color Sorter Machine
RCSK Series CCD Beans Color Sorter Machine
Technology Data:
| Model | RCSK2 | RCSK3 | RCSK4 | RCSK5 | RCSK6 | RCSK7 |
| Output(t/h) | 2-5 | 4-7.5 | 6-10 | 7-12.5 | 8-13 | 10-15 |
| Carryover (bad:good) | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 |
| Accuary(%) | >99% | >99% | >99% | >99% | >99% | >99% |
| Power(V/Hz) | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Power(Kw) | 0.8-1.5 | 1-2.0 | 1-3.0 | 1.5-3.5 | 1.5-4.0 | 2-4.5 |
| Air pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Consumption(L/min) | ＜960 | ＜1440 | ＜1920 | ＜2400 | ＜2880 | ＜3360 |
| Weight(Kg) | 500 | 700 | 850 | 950 | 1100 | 1400 |
| Dimensions(mm) | 1250*1607*1953 | 1875*1607*1953 | 1920*1607*1953 | 2260*1607*1953 | 2596*1607*1953 | 2934*1607*1953 |
RCSK Series CCD Beans Color Sorter Machine Features:
1, the introduction of LED Air Cooling
Solve the LED light source due to prolonged use of high temperature, short life and other issues, ensuring constant LED light source durable.
2, the unique suction ventilation system
You can remove dust and other raw materials in the ethereal substance, to ensure that the lens identification, higher color sorting accuracy.
3, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
4, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5, the image processing system
International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide “color selection + shape selected” function for different materials, a variety of modes set free.
Recommended Applications:
Rice
Wheat
Peanuts
Seeds
Grains
Beans and Pulses
Example of Sorting:
Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Delivery Time: 20- 30 Days after order confirmed.
Payment Terms: TT, Letter of Credit.
Commissioning and Installation:
1. On Site Installation and Training Service by our professional engineer ;
2. Study and Learn the Machine Operation in Our Factory.
3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.
After Sales Services:
• With presence in a variety of countries, Metak is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• Metak products will be serviced and supported wherever customers are located.
• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.
Metak Beans Sorter Machine Working Video
How does the Metak Beans Sorting Machine Work?
According to the different color selection of materials, detecting the colors of the granular materials that pass before them, and using mechanical or pneumatic ejection devices to divert the material whose colors do not fall within the acceptable range.
Suitable sorting and grading: All beans, peanuts, rice, wheat, etc..
How Metak Beans Sorter Machine Can Help you?
Improving your profitability:
Highest quality production
Lowest product loss
Diverse products, any contaminant
Minimal product damage
Low operating costs – long term warranty
Optimum recovery rates
Enhancing your productivity:
Minimum operator skills
High uptime
Quick and easy installation
Maintenance from remote locations
For consistency in production
Effective in harshest environments
Get Your Solutions with Metak Beans Color Sorter Machine, Inquiry us NOW!
